Racetrack Loudspeaker Application

A simplified flat TV was modelled to illustrate the low frequency behaviour of the racetrack loudspeaker in a front mounted situation.

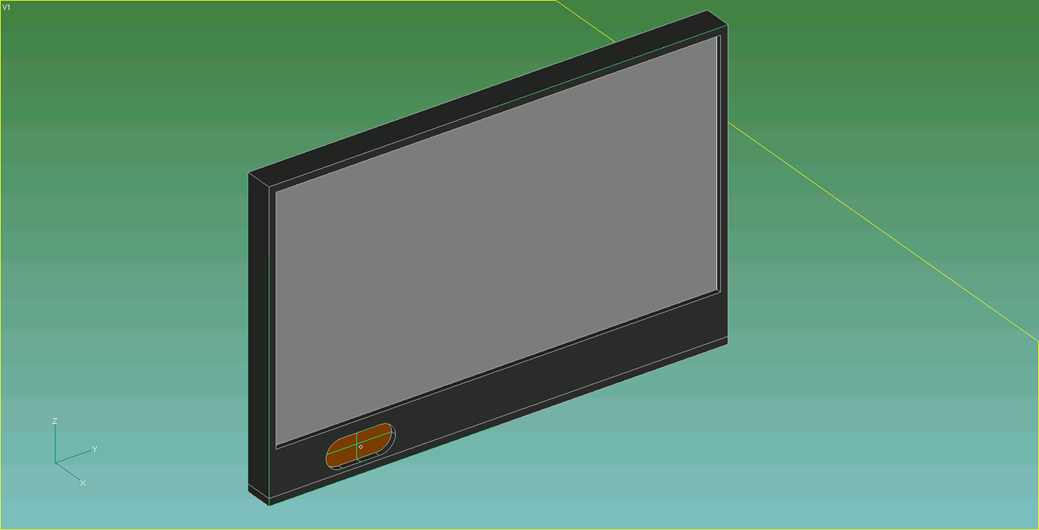

Model of TV

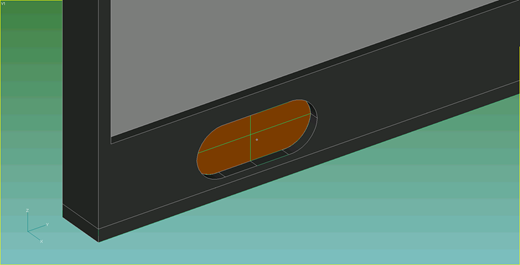

Close-up of Loudspeaker Recess



For simplicity and to isolate the effects of acoustic diffraction around the body of the TV, the loudspeaker was modelled as a simple piston, which as we have seen for this loudspeaker, is only true to ~350Hz after which the cone "breaks-up" into complex structural modes.

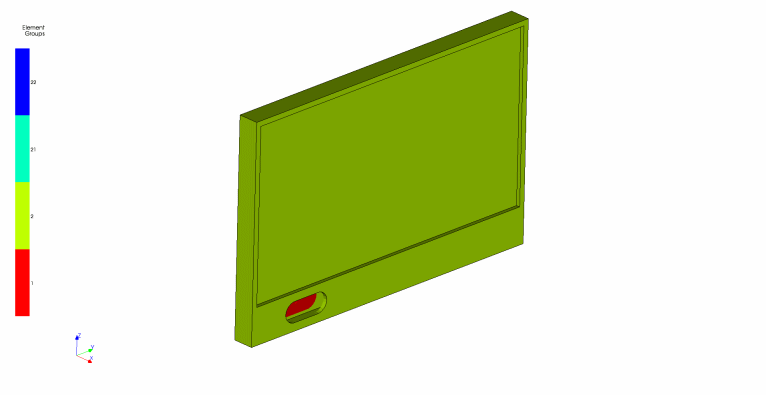

Simplified Behaviour of the Loudspeaker

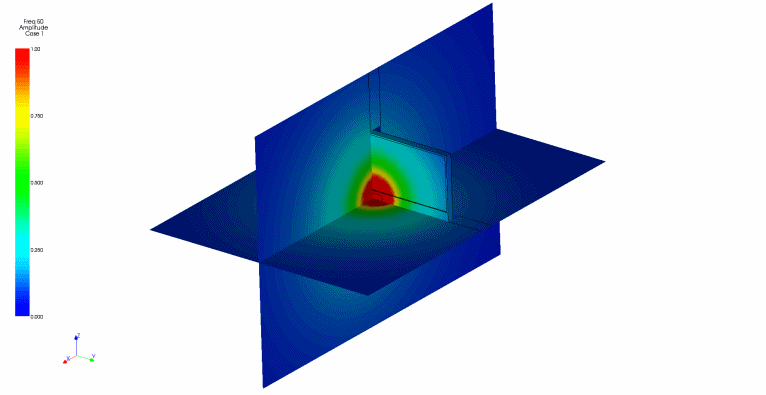

3D View - Pressure Amplitude as Frequency is Swept from 50Hz to 550Hz

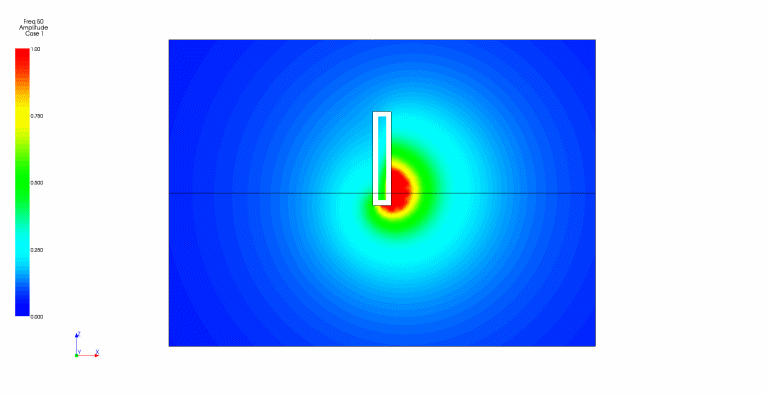

Side View - Pressure Amplitude as Frequency is Swept from 50Hz to 550Hz

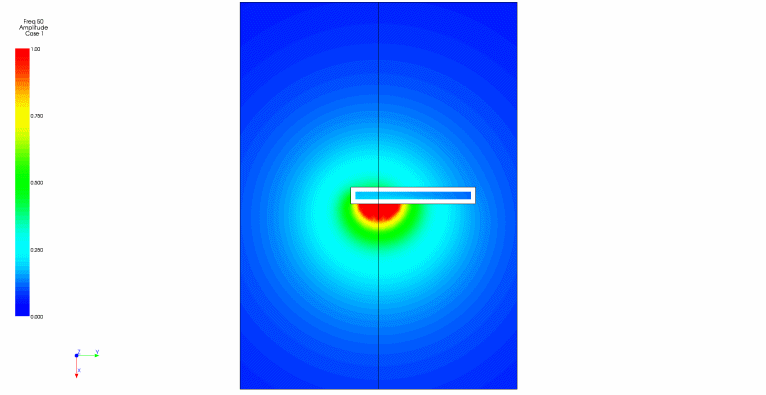

Top View - Pressure Amplitude as Frequency is Swept from 50Hz to 550Hz
